The Swell™ is a straight, parallel-walled and slightly tapered implant with V-shaped thread design. Its unique design allows for extremely accurate positioning, for improved esthetics and better load distribution. The Swell™ features AB/AE (Alumina-Oxide Blasted / Acid-Etched) surface treatment.
The prosthetic connection of this implant system is a standard internal hex 3.5mmD for all implants regardless of the diameter.
Swell™ advantages:
▪ Double-lead threads (2x0.6mm)
▪ Self-tapping
▪ Single restorative / prosthetic platform for easy restoration
- 3.3mmD

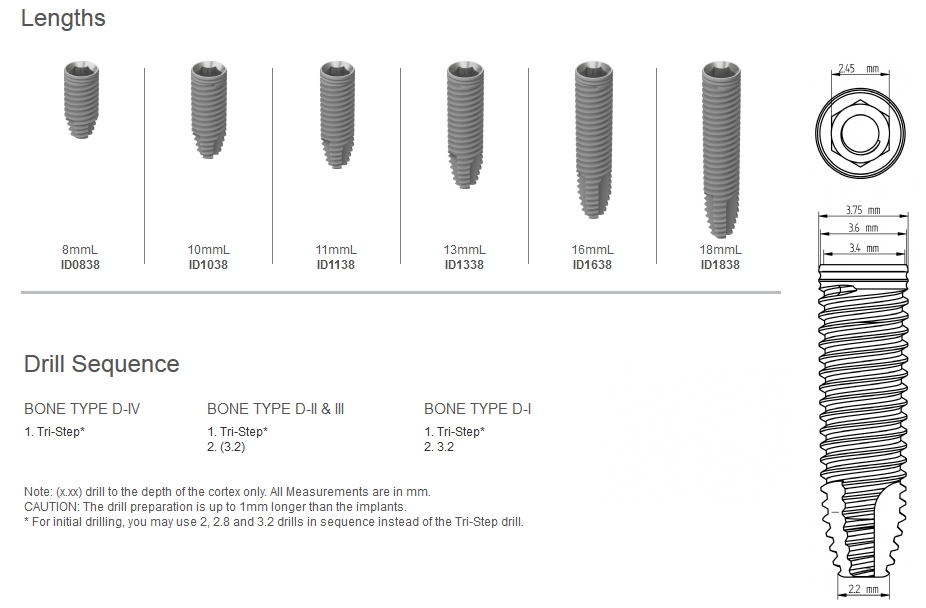

- 3.75mmD

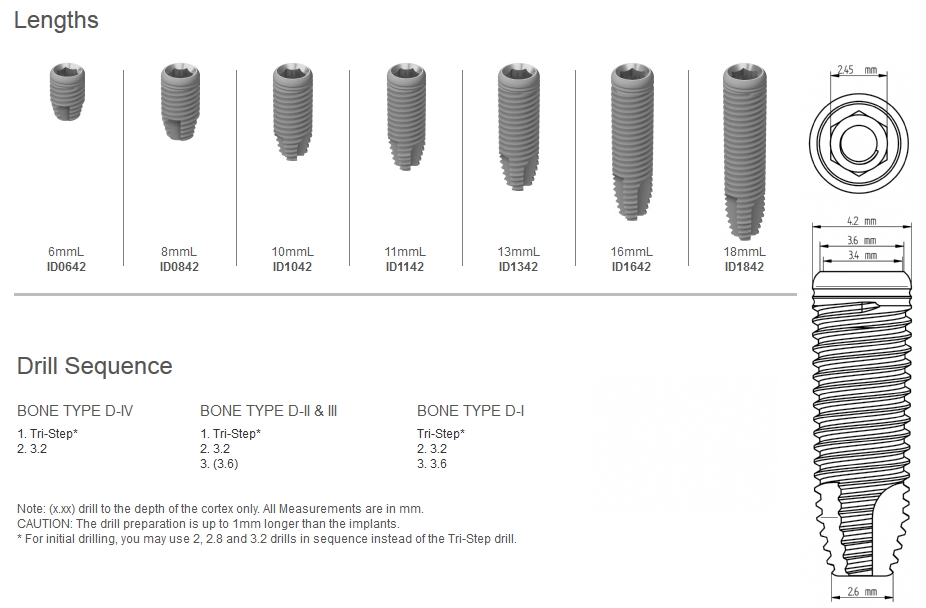

- 4.2mmD

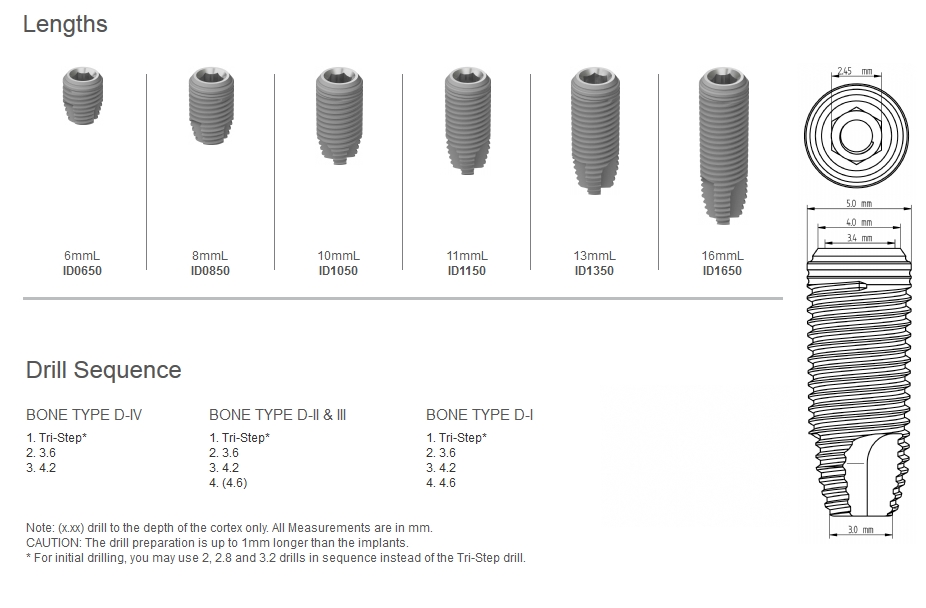

- 5mmD

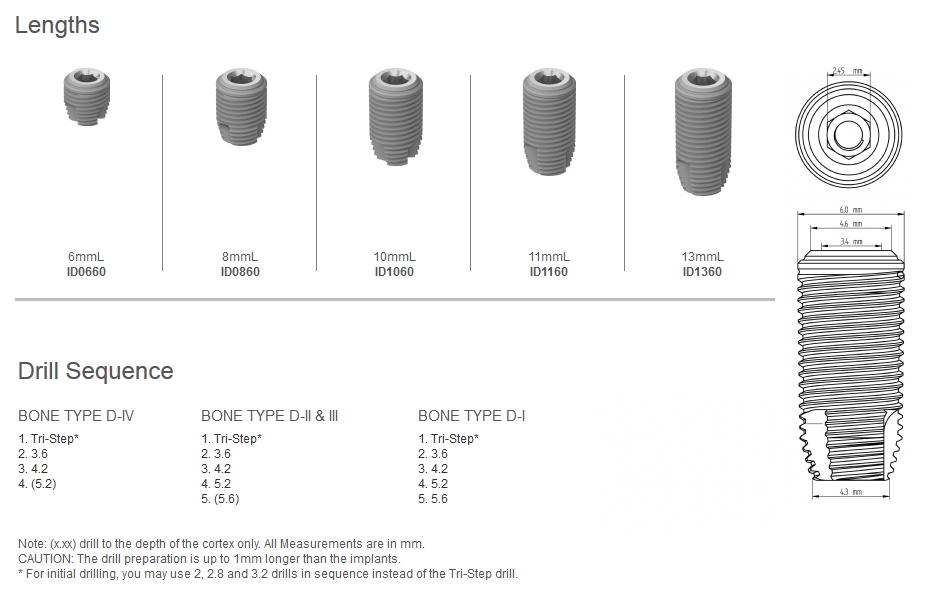

- 6mmD
